Dry-air Insulated Load Breaker Switch_Underground line

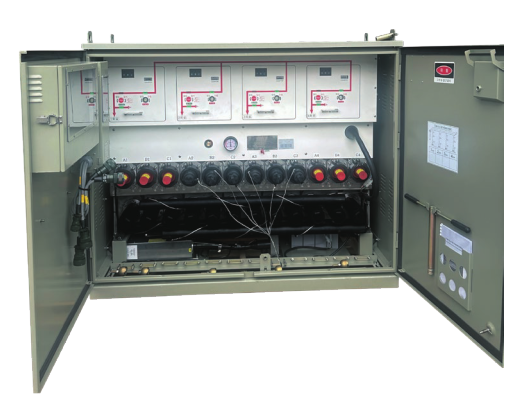

A device designed to provide stable power supply for sectionalizing and switching in urban underground distribution lines (Environment friendly, greenhouse gas-free product)
[
Description
]- Dry-air insulated underground Load Break Switch
- Featuring an environmentally friendly insulation method, it offers easy maintenance and reliable operation
- Primarily used to save space and ensure reliable power supply
[
Features
]- 01 Up to 6 way switchgear with earthing switch
- 02 Counter of operation times
- 03 Pressure gauge
- 04 Vacuum interrupter for breaking the load current
- 05 Overpressure relief device
[
Advantages
]-
01
Simple operating mechanism
-
02
Switchgear vessel made of stainless steel
-
03
Climate-independent
-
04
Easy installation and operation
[
Specification
]| Item | RA2L |
| Rated voltage | 25.8 |
| Rated continuous current | 630 |
| Rated power frequency withstand voltage | 50/60 |
| Rated lightning impulse withstand voltage | 125/145 |
| Rated frequency | 50/60 |
| Rated short-time withstand current | 12.5/16 |
| Rated peak withstand current | 32.5/41.6 |
| Rated duration of short circuit | 1 |
| Rated short-circuit making current | 32.5/41.6 |
| Mechanical endurance | 5,000 (M2) |
| Rated Mainly active load breaking currents | 630 (E3) |
| Rated cable-charging breaking currents | 25 |
| Rated line-charging breaking-currents | 1.5 |
| Operating time Close/Open | ≤ 1.5 |
| Applied standard | IEC 62271-103 |
